Bathtub Leak Detection & Repair in Loveland, CO
A bathtub is the heaviest fixture in the house doing the simplest job, and it has been leaking the same four ways for a hundred years: at the overflow, at the drain shoe, at the spout and its plumbing, and around its own edges. The materials changed from cast iron to acrylic. The four failure points never did.
The Overflow: the Gasket Nobody Has Ever Seen

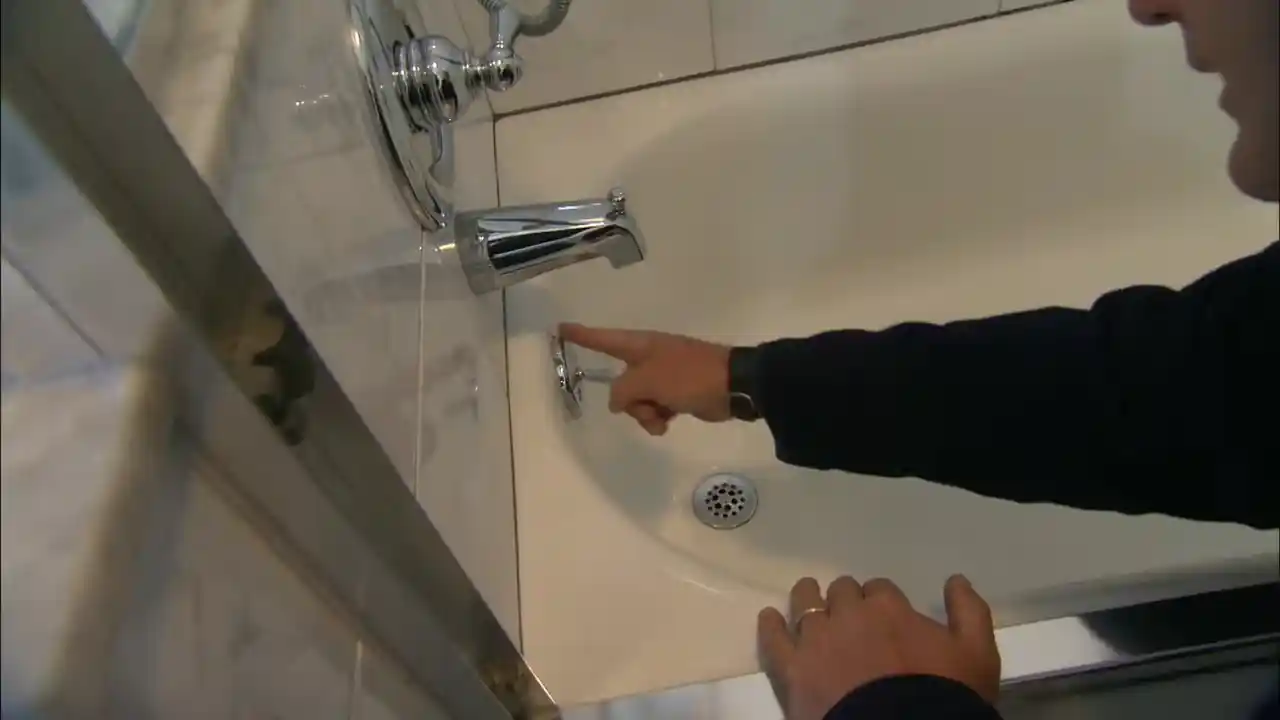

Behind the little chrome plate below the spout sits a rubber gasket pressed against the back of the tub wall, and it is the most common bathtub leak in existence. It only sees water when the tub fills high, or when a bather leans back and sends a wave over it. That is why the classic symptom is a ceiling mark after long soaks and kids’ bath nights, but never after quick showers in the same tub.
The gasket hardens with age and drops away from the tub wall a millimeter at a time. The test is direct: fill high on purpose, or run water into the overflow plate deliberately, and watch below. The repair is a new gasket and a properly tensioned plate, one of the cheapest fixes in plumbing, sitting behind one of the scariest-looking symptoms.
The Drain Shoe and the Waste-and-Overflow
Under the tub, the drain connects through a shoe fitting to the waste-and-overflow assembly, a small tree of pipe that unites the drain and overflow before the trap. Every joint in that tree is a candidate. The shoe gasket fails from decades of plug-and-drain cycles. Slip joints loosen as the tub flexes under load, and acrylic tubs flex far more than the cast iron they replaced.
These leaks run on a use schedule, wetting the floor cavity only while the tub drains, and they share a courtroom with every other drain-side suspect. Access decides the repair: some assemblies get reached through a closet-side panel, others through a ceiling opening below that was coming out anyway once the stain went structural.
Spouts, Diverters, and the Wall Behind Them
A tub spout is a pipe stub in the wall wearing a chrome sleeve, and its threads take abuse every time a spout gets twisted on or off. A compromised spout connection sprays backward into the wall while the tub runs. The diverter adds a second failure: with the shower engaged, a worn diverter lets water keep flowing down the spout path, and a marginal spout connection turns that steady trickle into a wall-cavity drip.
Deck-mounted tub faucets, common on the garden tubs of the 1990s builds from Berthoud up through Loveland’s big-bathroom era, hide their connections under the tub deck where no one looks for years. A dry visit with the access panel open, then a wet visit with everything running, sorts the deck plumbing from the tub itself.
The Edges: Where the Tub Meets Everything Else
Not all tub leaks are plumbed. The caulk line where tub meets surround, the corner seams of a tile flange, and the floor joint at the apron all let bath splash into the structure when they fail. And they fail on the same decade schedule as everything else in the room. Water from a failed edge shows below in the same places plumbing leaks do, which is why edge testing, wetting the seams deliberately with the drain closed and plumbing off, comes before any opening.
Whirlpool and jetted tubs add pump unions and air lines under the apron, a small plumbing system of their own that gets tested the same dry-then-wet way. The room-wide version of this investigation, when the evidence will not narrow to the tub at all, lives on the whole-bathroom page.
Fix the Tub Without Remodeling the Bathroom
Bathtub repairs earn their keep by staying small. Gaskets, shoes, waste-and-overflow rebuilds, spout stubs, and diverters are all parts-level work once named. Naming them is an hour of method: fill tests, overflow tests, drain tests, and seam tests, each one isolating a suspect while the others stay dry.
The stain below is usually older than it looks and smaller than it feels. Bring the symptom and its timing to (303) 552-3896, If the ceiling below the tub sags rather than stains, stop using the tub today and say so on the call. Sagging drywall is holding water.
✆ Call (303) 552-3896Bathtub Leak Questions
The tub only leaks during baths, never showers. What does that mean?
It points hard at the overflow gasket or high-water seam leaks, since baths raise the water level and showers do not. That single scheduling detail eliminates half the suspects before any testing starts, which is why we always ask what kind of use triggers the symptom.
Can a cast iron tub itself crack and leak?
The iron itself almost never fails, but its enamel chips and the exposed iron rusts, and a rust-through at the drain basin does happen on century-old tubs. Acrylic and fiberglass tubs crack at the base from flexing over poor support far more often. Both get assessed honestly against replacement cost.
Why does the ceiling stain move around between bath nights?
Water exits the floor cavity at its low points, and framing deflects differently under a full tub than an empty one. A shifted drip point between uses is normal physics, not multiple leaks, though the testing sequence rules out a second source anyway before anyone opens drywall.
Is it worth fixing a leaking jetted tub we never use?
If the leak is in the jet plumbing and the tub serves as a plain soaker, capping or isolating the jet system can be the honest cheap fix. If the household truly never bathes in it, that conversation sometimes ends in a walk-in shower conversion instead, and we will say so rather than sell a repair.
