Shower Leak Detection & Repair in Loveland, CO
A stain under a shower has five standing suspects: the valve buried in the wall, the arm behind the showerhead, the drain connection, the door or enclosure, and the tile surround itself. They all produce the same ceiling mark, and only one of them did it. The method is interrogation, one suspect at a time.
Separating the Five Suspects
Each suspect gets its own test, in rising order of effort. The enclosure goes first: spray the door seals and curb from outside the wet zone with the drain plugged and watch below. Then the drain: fill the pan area with the valve off and observe, which convicts or clears the drain connection alone. The valve and arm get tested under pressure with the trim pulled, where a weep at the body or a loose drop-ear fitting shows itself directly.
Tile and grout come last because they leak slowest: water migrating through failed grout wets the backing over weeks, not showers. Moisture mapping across the surround shows whether the wall behind the tile is loaded. The order matters because each test isolates one path, and skipping steps is how showers get torn out for a fifty-cent door sweep.
The Valve in the Wall: Highest Stakes, Least Access
The mixing valve is the one pressurized component, so its leaks run around the clock rather than per shower, and it lives sealed inside a finished wall. Cartridge-era valves in the 1990s and 2000s builds around Eagle Brook Meadows and the west side are reaching service age. The drop-ear fittings behind older two-handle setups weep at the threads after decades of torque from arm changes.
Access is the craft decision. Many valves get serviced through the trim opening without any demolition. Where the body itself must be reached, the opening goes through the closet or hallway wall behind the shower whenever the framing allows, leaving the tile untouched and the patch somewhere paint can hide it.

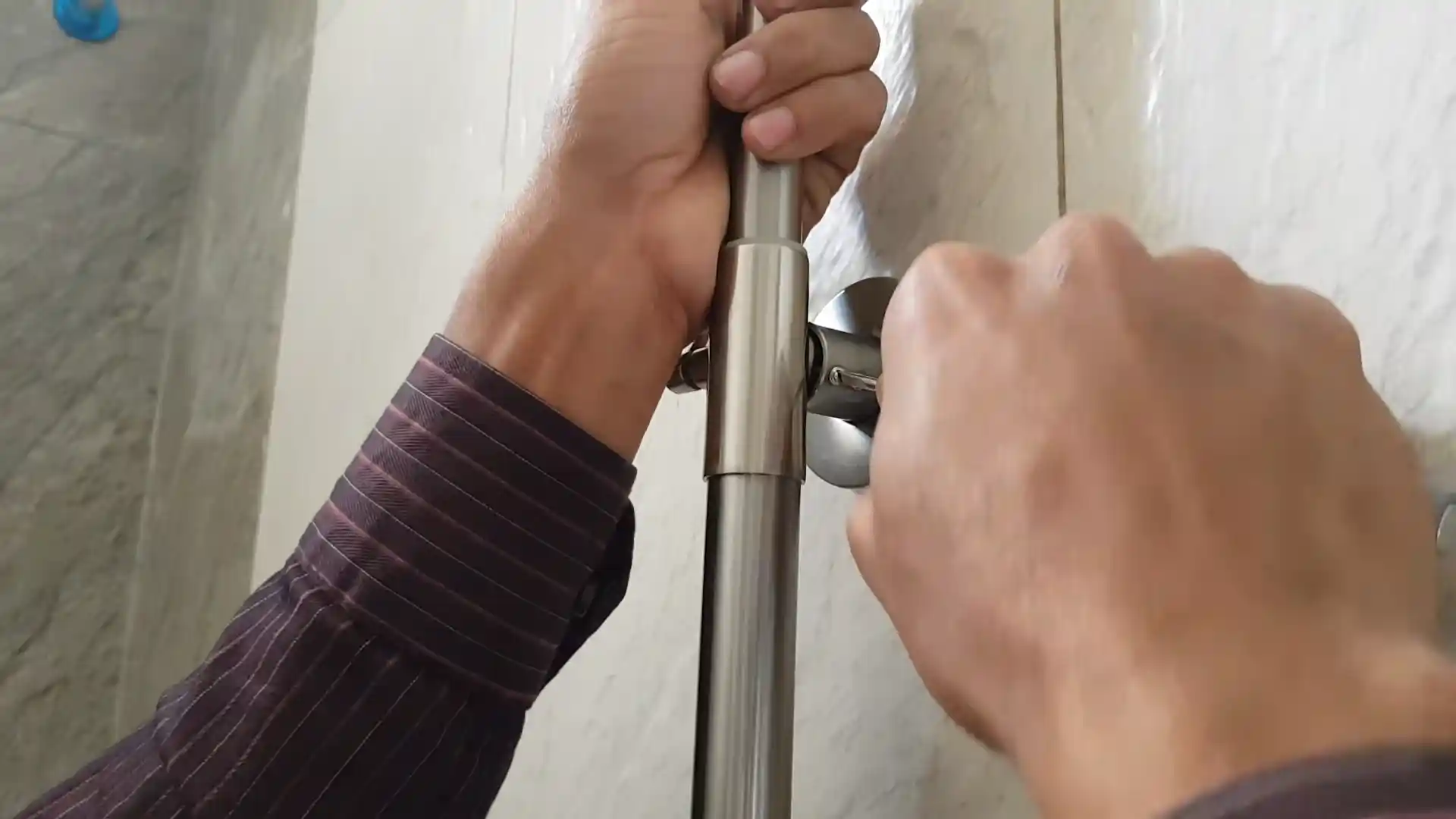

Arms, Heads, and the Leak Behind the Flange
The shower arm threads into a fitting inside the wall, and every showerhead swap in the home’s history has twisted those threads. A compromised arm connection sprays or dribbles inside the wall cavity only while water runs, soaking insulation and sole plates in a pattern that looks exactly like a valve failure from below. It is the most commonly missed shower leak and one of the cheapest to fix once named.
The test is direct: run the shower with the head removed and a test plug on the arm, then with flow through the arm, watching moisture response behind the wall each way. Two readings separate arm from valve without opening anything.
Enclosures: When the Plumbing Is Innocent
A large share of shower calls end with every pipe acquitted. Door sweeps harden and gap. Frameless glass relies on caulk joints that age out. Sliding-door tracks fill with soap sludge and overflow at the ends. Curbless designs, popular in newer accessible remodels, depend entirely on slope and get defeated by a bath mat placed wrong. The water below is real; the failure is carpentry and caulk rather than plumbing.
We fix the seal problems that belong to a service call and name the ones that belong to a glass company, with the test evidence attached. What we do not do is open a wall to hunt a leak the door already confessed to. Where the pan below is implicated instead, that verdict hands off to the pan and membrane page, which is its own world.
Fix the Right Thing the First Time
Shower leaks have the worst repeat-repair rate in residential plumbing, almost always because the first fix treated the wrong suspect. The five-test sequence exists to spend an hour of method instead of a weekend of demolition, and it produces a named, evidenced culprit before any repair is priced.
Bring the symptom and its schedule to (303) 552-3896. If the ceiling below drips mid-shower, shut the bathroom down and call now. If it is a slow mark that grows by the week, it will keep for a scheduled visit, and the stain itself gets read as part of the evidence.
✆ Call (303) 552-3896Shower Leak Questions
The shower leaks only when someone tall uses it. Seriously?
Seriously, and it is diagnostic gold. A taller user redirects spray higher and farther, loading door seams, the arm penetration, and grout lines the usual pattern never reaches. That detail points the enclosure and arm tests before anything else, and it has solved more than one mystery stain.
Can I keep using the shower while we wait for the visit?
If the symptom is a slow stain, short cooler showers with the door seams toweled after use limit the loading, and the schedule can hold a day or two. An active drip into the room below during use means stop: every shower is pushing water into framing, and the second bathroom earns its keep this week.
Is regrouting enough to stop a tile leak?
Only when the waterproofing behind the tile is intact and the grout was the sole gap. Grout is not the waterproof layer; the membrane or backer behind it is. If moisture readings show the wall already loaded, regrouting seals the evidence in rather than the water out, and the honest answer involves the layer beneath.
Why does the ceiling stain sit two feet away from the shower?
Water travels framing before it exits. A leak at the valve or drain follows the joist slope and drips at a light can, a seam, or wherever the drywall dips, routinely a few feet from the source. Stain position tells you a leak exists, not where it lives; the tests above do the locating.
